Revision as of 13:37, 19 March 2017
The Simplified Cab miniSim ...
Features:
- NADS miniSim computer loaded and tested prior to shipment
- LCD virtual instrument cluster
- Automotive seat
- Tilt wheel adjustment
- Logitech G27 steering loader enhanced with a 350mm leather-wrapped wheel
- Six wheel buttons that can be used for driver response, look left/right, shoulder check left/right
- Labeled buttons for engine start, gear select, wipers, hazard, mirrors, headlights, and two auxiliary buttons
- High-quality top-pivot pedals from ECCI
- 2.1 audio and tactile transducer and amplifier road and engine vibration
- A 22" operator LCD for miniSim, ISAT, and TMT interfaces
- Software as per the separate UIRF software transfer agreement:
- NADS miniSim real-time driving simulation software
- NADS ISAT™ scenario authoring tool for creating/modifying scenarios
- NADS TMT™ virtual environment authoring tool with 92 sample tiles
- NADS nDaqTools and GUI for Matlab to assist in Data Reduction
- NADS VidCap Video Capture software
- Tile Mosaic Tool software per the separate Rockwell Collins agreement
Options:

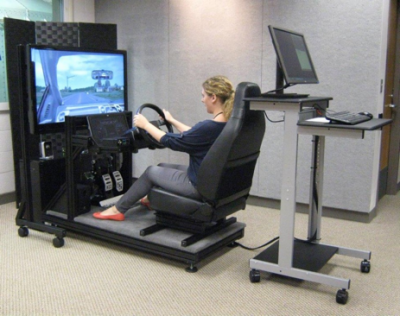

- Single display (46" inch to 65" inch or more)
- Three front 24 monitors
- Three front 46 monitors
- ECCI Trackstar 6000 wheel (350mm wheel, 250-degree rotation only, passive spring-damper)
- Standing desk
