Simplified Cab miniSim
-- miniSim. Big opportunities.
The Simplified Cab miniSim provides users with an even more realistic driving experience. Featuring an automotive seat, tilt wheel adjustment, and buttons for engine start, gear select, wipers, hazard, mirrors, headlights, and more. Various monitor configurations are available to tailor user experience to exactly what you're looking for. As with every miniSim product, customization is available, including the instrumentation of other switches per customer request.
 |
 |
|

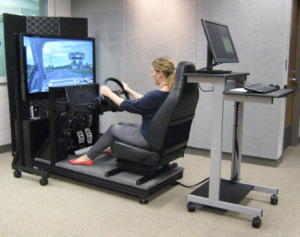

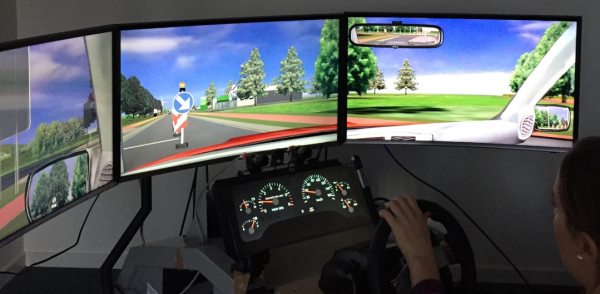

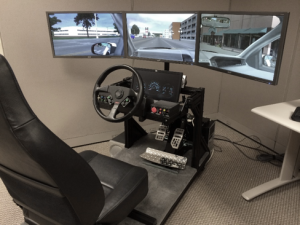

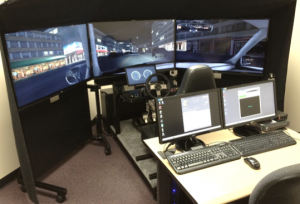

| 3 x 24" LCD | Single LCD | 3 x 48" LCD |
Features:
- NADS miniSim computer loaded and tested prior to shipment
- LCD dashboard display for the instrument cluster
- Automotive seat
- Tilt wheel adjustment
- Fanatec Club Sport V2 base
- Full-size leather-wrapped wheel
- CSR elite pedals
- Fanatec CSL elite all-metal pedals (load-cell pedal optional)
- Six wheel buttons that can be used for driver response, look left/right, shoulder check left/right
- Labeled buttons for engine start, gear select, wipers, hazard, mirrors, headlights, and two auxiliary buttons
- Tactile transducer and amplifier provides road/engine vibration
- A 24" operator display with USB extension for keyboard and mouse
- Software as per the separate UIRF software transfer agreement:
- NADS miniSim™ real-time driving simulation software
- NADS ISAT™ scenario authoring tool for creating/modifying scenarios
- NADS TMT™ virtual environment authoring tool with 92 sample tiles
- NADS nDaqTools and GUI for Matlab to assist in data reduction
- NADS VidCap Video Capture software
- Tile Mosaic Tool software per the separate Rockwell Collins agreement
Options:
- Three front 24" monitors
- Three front 46" monitors
- Single display (46" to 65" or more)
- Fanatec CSL pedal upgrade - load cell brake
- Standing desk
- ECCI Trackstar 6000 wheel (350mm wheel, 250-degree rotation only, passive spring-damper)
Accessories:
- NADS VidCap™ video recording system
- Eye-tracking compatible with the following systems:
- Eyetracking, Inc. (FOVIO, EyeWorks)
- Ergoneers (D-Lab data acquisition)
- Smart Eye (SmartEye Pro, MAPPS)
