Simplified Cab miniSim

The Simplified Cab miniSim configuration consists of an anodized aluminum chassis with carpet, stationery wheel and pedals, real car seat, plenty of driver controls and multiple display options. Our most popular driving simulator..
miniSim

NADS miniSim™ Driving Simulators

The NADS miniSim™ is a PC-based driving simulator. The software and hardware have been developed by NADS to facilitate a wide variety of research applications.

Every effort has been made to build and deliver a high-value, reliable, simulator system. An added benefit is that all the software tools are the same tools used by NADS staff on a daily basis for conducting driving and related research. This ensures a deep knowledge base, ongoing support, and continuous improvement by users who understand your research needs. Our software tools are available at no charge and deliver flexible, high performance simulation technology in any cab configuration.

NADS miniSim™ Software and PC

The software delivered with all miniSim simulators consists of the following tools:

  • The Tile Mosaic Tool (TMT) for assembling a road network from a library of 95 road/landscape segments called ‘Tiles’. You use the TMT to connect them together, control LODs, and export a complete database to the ISAT and miniSim. NADS can also create new tiles or modify existing ones to meet your specific needs.
  • The Interactive Scenario Authoring Tool (ISAT) for building scenarios on the assembled database. The ISAT is windows-based and does not require scripting.
  • The miniSim runs the scenario on the assembled database and provides both real-time measures and a comprehensive data acquisition file for post-processing in Matlab.
  • The nDaqTools are NADS-design interfaces for Matlab to define the measures to be calculated, and to organize and control the data reduction process.


The typical miniSim™ PC hardware specification is as follows:

  • Tower case
  • Windows 10 Pro
  • ASUS ASRock X99X Killer Motherboard
  • Intel Core i7 3.6GHz 6-Core Processor
  • 2 SSD in RAID (500 Gb ea, 500 Gb usable)
  • 32 GB DDR4 SDRAM
  • NVidia GeForce GTX 1080 and GTX 1050Ti GPUs


Description: Simplified Cab miniSim™ Driving Simulator

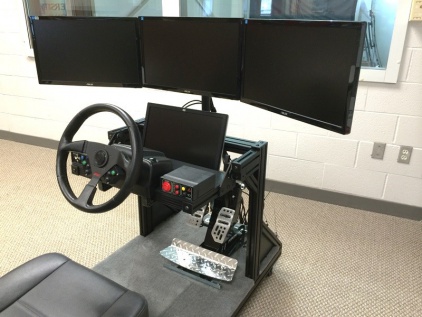

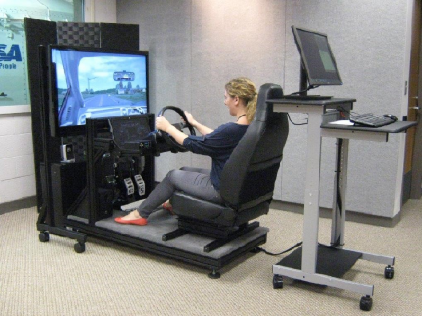

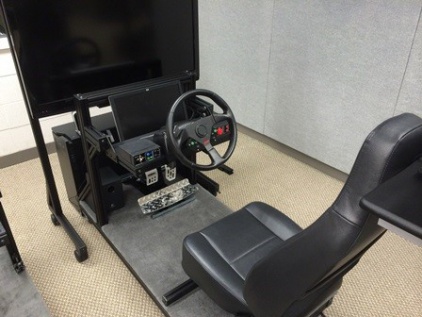

The miniSim Simplified cab is a driving cab with the following features:

  • NADS miniSim computer loaded and tested prior to shipment
  • LCD dashboard display for the instrument cluster
  • Automotive seat
  • Tilt wheel adjustment
  • Fanatec Club Sport V2.5 base, Full-Size Leather-Wrapped Wheel, CSR Elite Pedals
  • Fanatec CSL Elite All-Metal Pedals (Load-Cell Pedal Optional)
  • 6 Wheel buttons that can be used for driver response, look left/right, shoulder check left/right
  • Labeled buttons for Engine Start, Gear Select, Wipers, Hazard, Mirrors, Headlights, and two Auxiliary Buttons
  • Tactile transducer and amplifier provides road/engine vibration
  • A 24” operator display with USB Extension for keyboard and mouse
  • Software as described in the separate UIRF Software Transfer Agreement:
    • NADS miniSim™ real-time driving simulation software
    • NADS ISAT™ scenario authoring tool for creating/modifying scenarios
    • NADS TMT™ virtual environment authoring tool with 92 sample tiles
    • NADS nDaqTools and GUI for Matlab to assist in Data Reduction
  • Tile Mosaic Tool software per the separate Rockwell Collins agreement:
    • NADS TMT™ virtual environment authoring tool with 92 sample tiles


The following options are available:

  • Three front 24 inch monitors
  • Three front 48 inch monitors
  • Single display (48 inch to 65 inch or more)
  • Fanatec Load Cell Pedal Upgrade
  • Standing Desk
  • ECCI Trackstar 6000 wheel (350mm wheel, 250-deg rotation only, passive spring-damper)

Costs: Simplified Cab:

Simplified Cab miniSim™ - $19,300
Includes:

  • miniSim Computer - Tower Case
  • Enhanced Fanatec Wheel and Pedals
  • Button Boxes
  • Tilt Wheel Adjustment
  • Automotive Black Vinyl Seat
  • Tactile Transducer and Amplifier
  • 18" Instrument Panel Display
  • 2.1 Audio (Front L/R and Subwoofer)
  • Tactile Transducer and Amplifier


Choose Display Type (choose 1):

  • (3) 48" LED LCD and Stand - $6,750
    • 15' DVI cables
    • Matrox Triple Head Adapter
  • (3) 24" LED LCD and Stand - $3,200
    • 10' DVI Cables
    • Matrox Triple Head Adapter
  • (1) 48" LED LCD and Stand - $2,750
    • 15' DVI cables


Choose Installation and Training (choose 1):

  • On-Site Installation, 2-days onsite - $13,700
    • Setup of Simplified and Quarter-Cab Simulators
    • miniSim and TMT Training on-site
    • ISAT and nDAQTools remotely
  • Training at NADS or Remotely - $3,900
    • Desktop system ONLY
    • Training remotely via web meeting for miniSim, TMT, nDAQTools, and ISAT


Crating:

  • Simplified Cab with 3x24" Displays - $2,150
  • Simplified Cab with 3x48" Displays - $4,000


Shipping:

  • Customer pays shipping (FOB Iowa City, freight collect)


Options:

  • NADS Video Capture System (HD SDI Cameras) - $10,600
    • PC, LCD Display, Keyboard, Mouse
    • NADS VidCap Software Installed and tested
  • Fanatec Load Cell Brake Upgrade - $200
    • For Desktop and Simplified Cab Systems
  • Button Box - $1,700
    • For Desktop Systems (incl. in Simplified Cab)
  • NADS Springfield Road Network - $5,250
  • Remote Training (ISAT only) - $2,775
  • Standing Desk - $300


Schedule:

  • Simplified Cab production time is 12-14 weeks. Lead times for the miniSim Simplified Cab configuration are from the date of the Award Activation Notice issued by the Department of Sponsored Programs (DSP).



NOTES:

  • The option exists for the user to supply some of the parts according to a NADS-supplied shopping list.
  • Shipping is not included. The customer pays directly for shipping.
  • Alternative shipping options include:
    • UPS Parcel Service for Desktop systems.
    • Simplified and Quarter Cab systems may be moved by Padded Mover. Cost can be advantageous over traditional crating and freight. Contact NADS for details.
  • Technical specs may change at any time due to hardware changes or availability.
